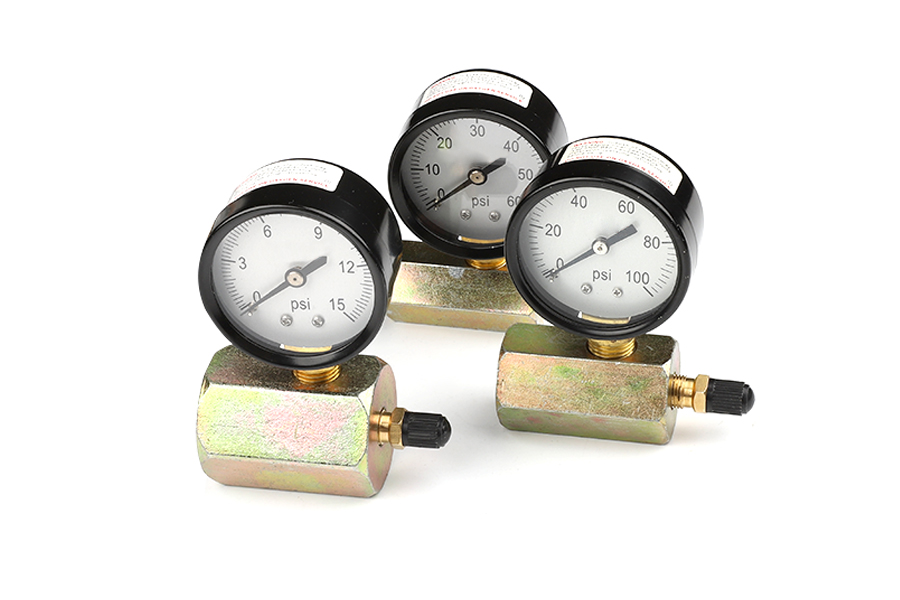

Parallel Hex Fitting for Pressure Gauge
- Pressure Gauge for Gas Line Testing
- Clear and easy-to-read dial with precise markings for accurate pressure readings.
- Durable structure with excellent sealing to ensure reliable pressure testing.
- Sturdy gauge housing protects internal components.
General Properties
- Gauge Material: Steel, Brass
- Body Materia: Steel
- Window: Clear Plastic
- Finish: Zinc-plated
- Dial Size: 2"
- Dial Plate: Aluminum, with pointer stop
- Pointer: Aluminum, black
- Connection : Brass
- Pressure Range: 0-15psi, 0-30ps, 0-60psi, 0-100psi
- Accuracy：+/-1%
Specifications

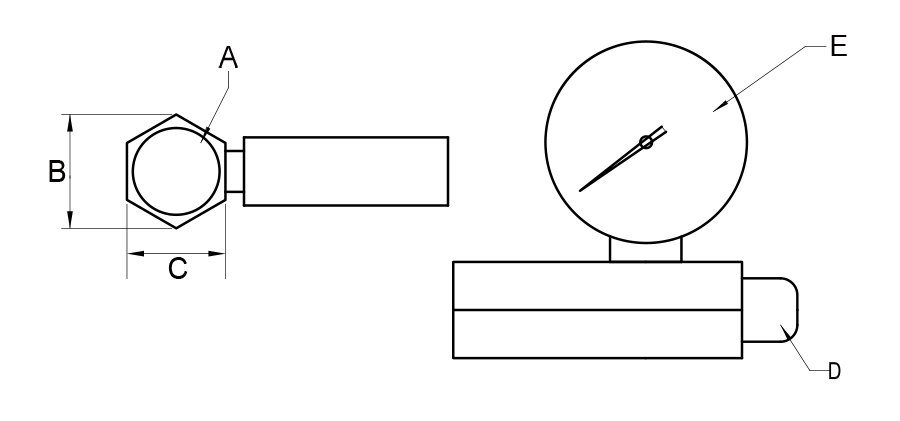

| Item No. | Specifications | A | B | C | D Connector | E |
| BT1215H | 1/2" 0-15 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3415H | 3/4" 0-15 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1015H | 1" 0-15 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT1230H | 1/2" 0-30 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3430H | 3/4" 0-30 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1030H | 1" 0-30 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT1260H | 1/2" 0-60 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3460H | 3/4" 0-60 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1060H | 1" 0-60 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT12100H | 1/2" 0-100 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT34100H | 3/4" 0-100 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT10100H | 1" 0-100 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
