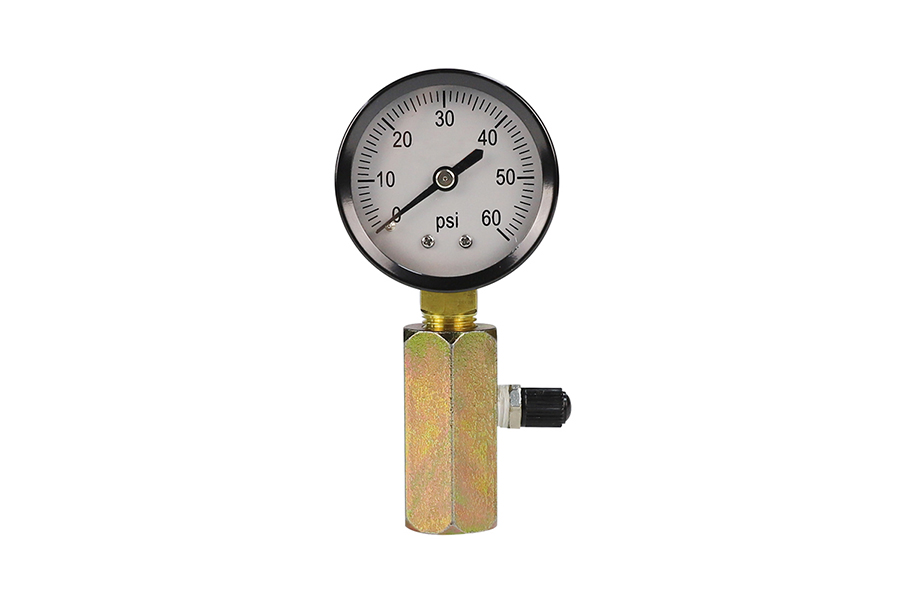

Vertical Hex Fitting for Pressure Gauge
- All models feature a 2-inch diameter face for clear visibility and durability.
- Galvanized threaded connections ensure excellent sealing, ideal for various gas pressure testing applications.
General Properties
- Gauge Material: Steel, Brass
- Body Materia: Steel
- Window: Clear Plastic
- Finish: Zinc-plated
- Dial Size: 2"
- Dial Plate: Aluminum, with pointer stop
- Pointer: Aluminum, black
- Connection : Brass
- Pressure Range: 0-15psi, 0-30ps, 0-60psi, 0-100psi
- Accuracy：+/-1%
技术参数

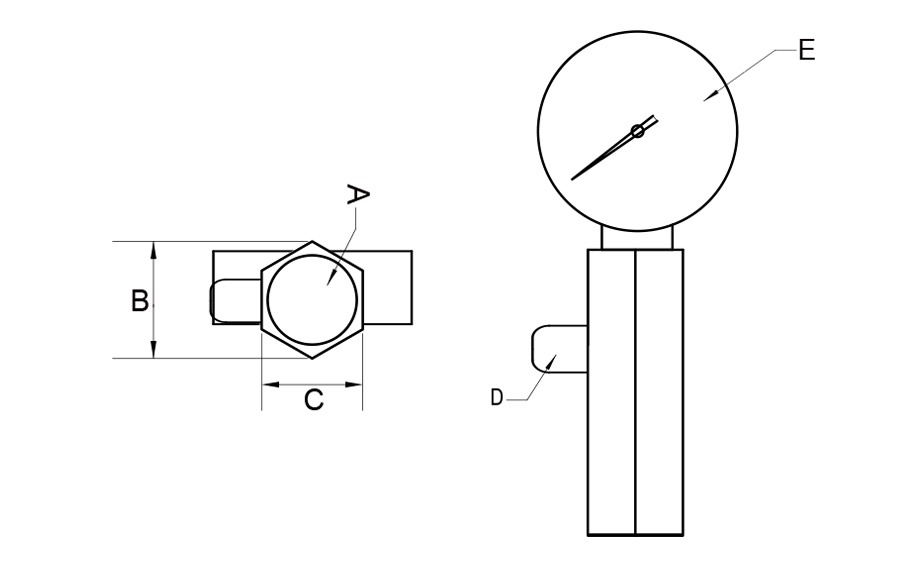

| Item No. | Specifications | A | B | C | D Connector | E |
| BT1215V | 1/2" 0-15 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3415V | 3/4" 0-15 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1015V | 1" 0-15 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT1230V | 1/2" 0-30 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3430V | 3/4" 0-30 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1030V | 1" 0-30 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT1260V | 1/2" 0-60 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3460V | 3/4" 0-60 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1060V | 1" 0-60 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT12100V | 1/2" 0-100 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT34100V | 3/4" 0-100 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT10100V | 1" 0-100 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
