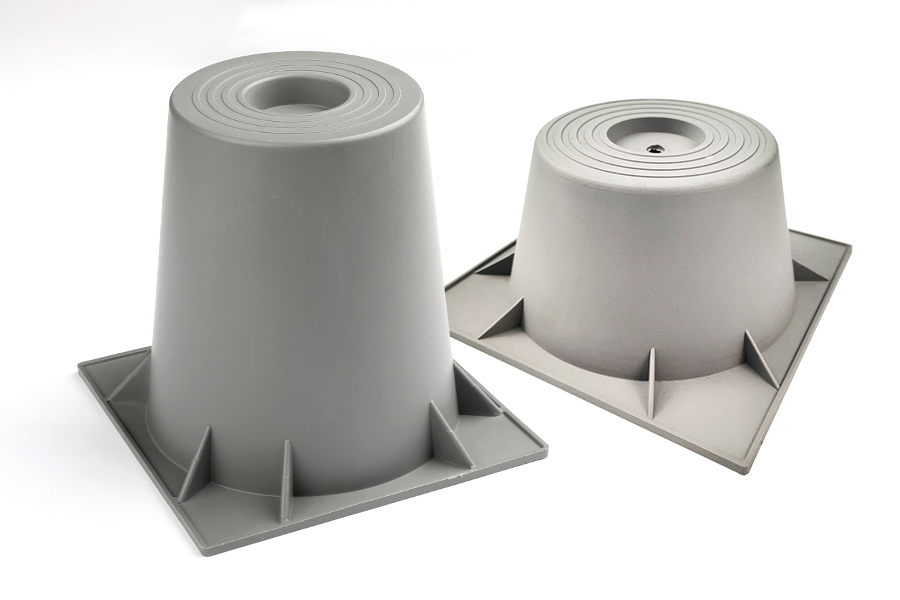

One-piece Equipment Stand
- Encapsulated with butyl sealant to enhance slip resistance, vibration isolation, and noise reduction.
- Effectively extends the service life of condensers, heat pumps, and air conditioning units.
- Elevates equipment off the ground to prevent damage from standing water.
General Properties
- General Properties
- Material: High-pressure injection-molded polypropylene (PP)
- Color: Gray
- Maximum Uniform Load Capacity: 2000 lbs
- Maximum Point Load Capacity: Less than 560 lbs
- Applications: Heat Pump Risers offer a durable and stable platform designed to elevate heat pumps or air handlers, enhancing system performance and installation flexibility.
Specifications

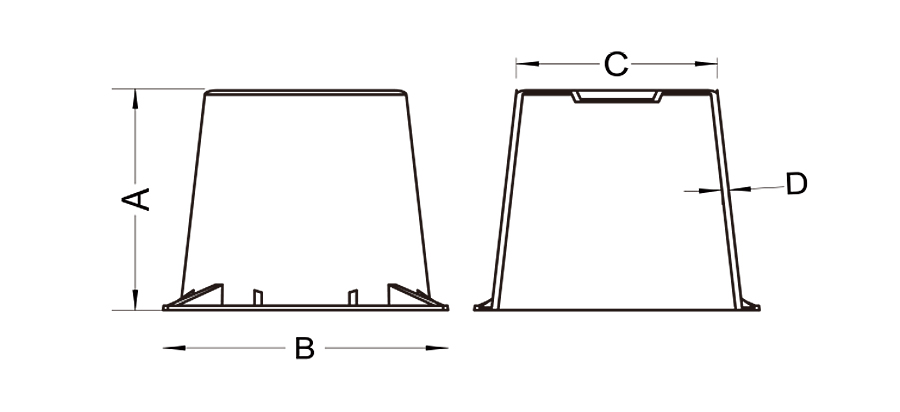

| Item No. | Specifications | A | B | C | D |
| BT1003 | 3", Gray | 3.0" | 6-1/4" | 3-7/8" | 3/32" |
| BT1006 | 6", Gray | 6.0" | 6-1/4" | 3-7/8" | 3/32" |
| BT1012 | 12", Gray | 12.0" | 6-1/4" | 4-1/4" | 9/64" |
